380 Grinding Head & Column Assembly
| Quick View | Image | Name | Summary | Price | Buy |
|---|---|---|---|---|---|
| P01045 | Screw, Hex Soc. Cap M5x10 | $2.00 | |||
 | P01707U | Joint, Rubber Coupling – H.D. Urethane | $29.00 | ||
| P04002 | Screw, Hex Hd. (M10 x 25) | $2.00 | |||
| P04003 | Washer, Lock M10 | $2.00 | |||
| P04009 | Screw, Soc. Hd. Cap (M4 x 12) | $2.00 | |||
 | P04010 | Flange, Ring (Motor Slide) | $18.00 | ||
 | P04012 | Cast, Grinding Head | $428.00 | ||
| P04013 | Nut, Hex (M10) | $1.00 | |||
| P04014 | Washer, Lock (M10) | $1.00 | |||
 | P04015 | Bolt, T-Head 3/8″ x 1-1/2″ | $15.00 | ||
| P04016 | Screw, Hex Soc. Hd. Cap (M6x20) | $2.00 | |||
| P04025 | Screw, Knurled Hd. | $12.00 | |||
 | P04028 | Washer, Spring Bearing | $6.00 | ||
 | P04029 | Flange, Ring (Whl. Slide) w/Instr. | $25.00 | ||
 | P04030 | Screw, Hex Socket Flat Head – (M4 x 10) | $2.00 | ||
 | P04036 | Nut, Hex – Spindle – Straight Spindle Only | $15.00 | ||
| P04037 | Washer, Lock | $1.00 | |||
| P04038 | Screw, Hex Socket Head Cap | $2.00 | |||
| P04039 | Casting, vert. column | $428.00 | |||
| P04040 | Screw, Hex Soc. Hd. Cap | $2.00 | |||
 | P04041 | See P04048 – Nut w/Lead Screw | |||
 | P04042 | Casting, Vert. Slide | $184.00 | ||
 | P04043 | Casting, Screw Nut Block | $45.00 | ||
| P04044 | Screw, Hex Soc. Hd. Cap | $2.00 | |||
 | P04045 | Gib. Taper, Vertical Slide (.498R6) | $65.00 | ||
 | P04046 | Screw, Special Slotted Gib | $9.00 | ||
| P04047 | Screw, Hex | $2.00 | |||

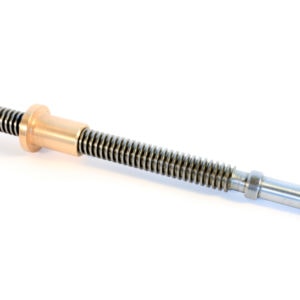

| P04048 | Screw, Vertical Lead w/Nut (P04041) | $149.00 | ||
 | P04049 | Key Shaft – Vertical Screw | $2.00 | ||
 | P04050 | Plate, Vertical Slide End | $32.00 | ||
| P04051 | Washer, Lock | $1.00 | |||
| P04052 | Screw, Hex Soc. Hd. Cap | $2.00 | |||
| P04053 | Washer | $1.00 | |||
| P04054 | Screw, Hex Soc. Hd. Cap | $2.00 | |||
 | P04055 | Bushing | $12.00 | ||
 | P04056 | Bearing, Ball Thrust w/Washers | $39.00 | ||
| P04057 | Ring, Spacer | $11.00 | |||
 | P04058 | Wheel, Vertical Crank | $70.00 | ||
| P04059 | Washer, Flat | $1.00 | |||
 | P04060 | Nut, Hex Elastic Stop | $5.00 | ||
 | P04062 | Spindle, Crank Handle w/ P04061 & P04063 Screw, Hex Soc. Hd. Cap. Hand | $19.00 | ||
| P04063 | See P04062 Screw, Hex Soc. Hd. Cap. Hand | ||||
 | P04075 | Set-Bearing w/ (2) Thrust Washers, 12mm | $19.00 | ||
| P04111 | Bearing Ball (P06205) | ||||
 | P04118 | Housing Hinged Cover Wheel Guard | $184.00 | ||
| P04119 | See P04118 – Cover Wheel Guard | ||||
 | P04120 | Key, Motor End (5 mm) | $10.00 | ||
| P04121 | Drive Pin | ||||
 | P04122 | Plate, Reference Line | $7.00 | ||
| P04123 | Screw, Hex Soc. Hd. Cap | $2.00 | |||
 | P04124 | Air Def. Wheel Guard w/ P04128 Mounting Block | $50.00 | ||
| P04125 | See P04120 – Key, Motor End (5 mm) | ||||
| P04127 | Nameplate, Safety | $5.00 | |||
| P04128 | See P04124 – Mounting Block | ||||
| P04129 | Screw, Hex Soc. Hd. Cap | $1.00 | |||
| P04130 | Washer | $1.00 | |||
 | P04131 | Angle Scale | $18.00 | ||
| P04132 | Plate, Reference Line | $7.00 | ||
 | P04133 | Scale Spindle Height | $14.00 | ||
 | P04136 | Motor 1 HP. 230/460V 3 Phase | $650.00 | ||
 | P04137 | Cover, Flap, Lower Vertical | $18.00 | ||
 | P04138 | Cover, Accordion Upper Vertical | $95.00 | ||
 | P04139 | Ball Bearing, Double Row | $135.00 | ||
 | P04140 | Shaft Grinding (Taper Nose) | $250.00 | ||
| P04142 | Spacer for In-Between Grinding Wheels | ||||
 | P0BF01 | Balancing Flange – Must be used with taper hubs to allow balancing | $79.00 | ||
 | P0MW80 | Standard Main Grinding Wheel – 46 Grit Aluminum Oxide & Ceramic Blend | $159.00 | ||
 | P0TH07 | Hub, Grinding Wheel |
