Quick-Cut
Description

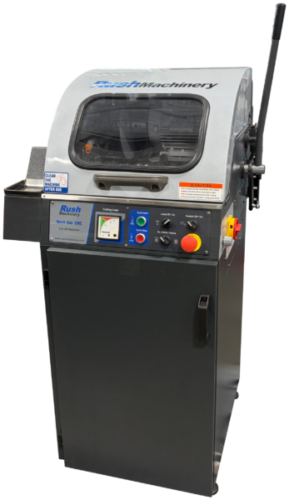

The Quick-Cut is a simple and easy-to-use general purpose manual cut-off machine, featuring a fully enclosed design with viewing window and internal illumination, an integrated recirculation cooling system, and washing jet. The Quick-Cut is used by cutting tool manufacturers and regrind shops to provide a safe, effective way of cutting carbide and HSS rods and tool ends.
Technical Specifications
| Machine Size | 33.46” x 29.53” x 61.02” (850 mm x 750 mm x 1550 mm) |
| Table Size | 4.33” x 7.87” (110 mm x 200 mm) with 0.47” (12 mm) T-slot – 2 Nos |
| Cut-Off Wheel Diameter | 10” (250mm) |
| Cutting Capacity | Up to 60 mm |
| Voltage | 415V/50 Hz (R+Y+B+N+PE) Option: 220V, 60 Hz (L+N+PE) |
| Full Load | 10.8 Amps. |
| Motor | 3HP (2.2kW), 3 phase motor |
| Spindle Speed | 2800 rpm |
| Recirculation Coolant Tank | 50 liter capacity |
| Coolant Pump | 0.18kW |
| Compressed Air | Air pressure 5-6 Bar |
| Air Quality Standard | ISO Standard 8573 |
| Provided Hose Size | Inner diameter: ID 6mm; Outer diameter: 8mm; Length 1.5 metres |
