RushCut

Description

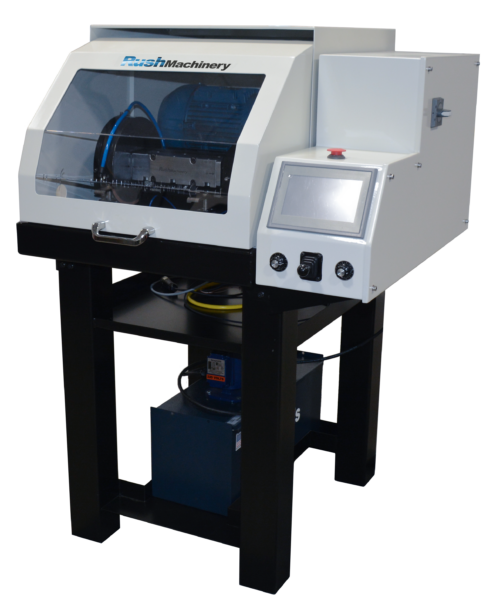

The RushCut is a fully enclosed semi-automatic cut-off machine. Use the RushCut for quick and easy cutting of carbide rod and tool ends with diameters between 1/8″ (3.175 mm) to 1-1/4″ (31.75 mm). It’s also great for high speed steel. PLC controlled, the RushCut has air actuated work piece clamping and hydraulic feed cutting stroke with a neutral button for manual positioning/feeding. Built in the USA.

Standard Features

Cuts: Carbide and HSS rod and tool ends

Size range: 1/8″ to 1-1/4″ (3mm to 32 mm)

Flood coolant system

Adjustable hydraulic feed rate with automatic cutting cycle return and cycle stop, and override for manual feeding.

Work piece V-block with carbide insert at cut zone. Pneumatic clamping clamping on one or both sides of the cut-off wheel with replaceable carbide clamp inserts (optional brass).

Full enclosure keeps coolant contained. Includes safety switch lockout for operator safety. Door stays locked until completion of cut cycle.

Waterproof LED work light

3 HP spindle motor 8″ diameter diamond or CBN cut-off wheel

Dimensions: 41″W x 34″D x 56″H

Weight (approx.): 700lbs., 800lbs. crated

Optional Accessories

30 Gallon Coolant System: two stage filter with 40-micron paper filter roll with 5-micron filter bag

Mist Collection: high efficiency air filtration up to 97% on submicron particles

Fire Suppression System: required when using oil as flood coolant
